Macro photography is a game of millimeters. When you’re shooting at 1:1 magnification or beyond, even the smallest camera movement can throw your subject out of focus. A standard tripod head helps, but it often lacks the controlled, repeatable front-to-back movement that macro work demands. That’s where a dedicated macro focusing rail becomes essential.

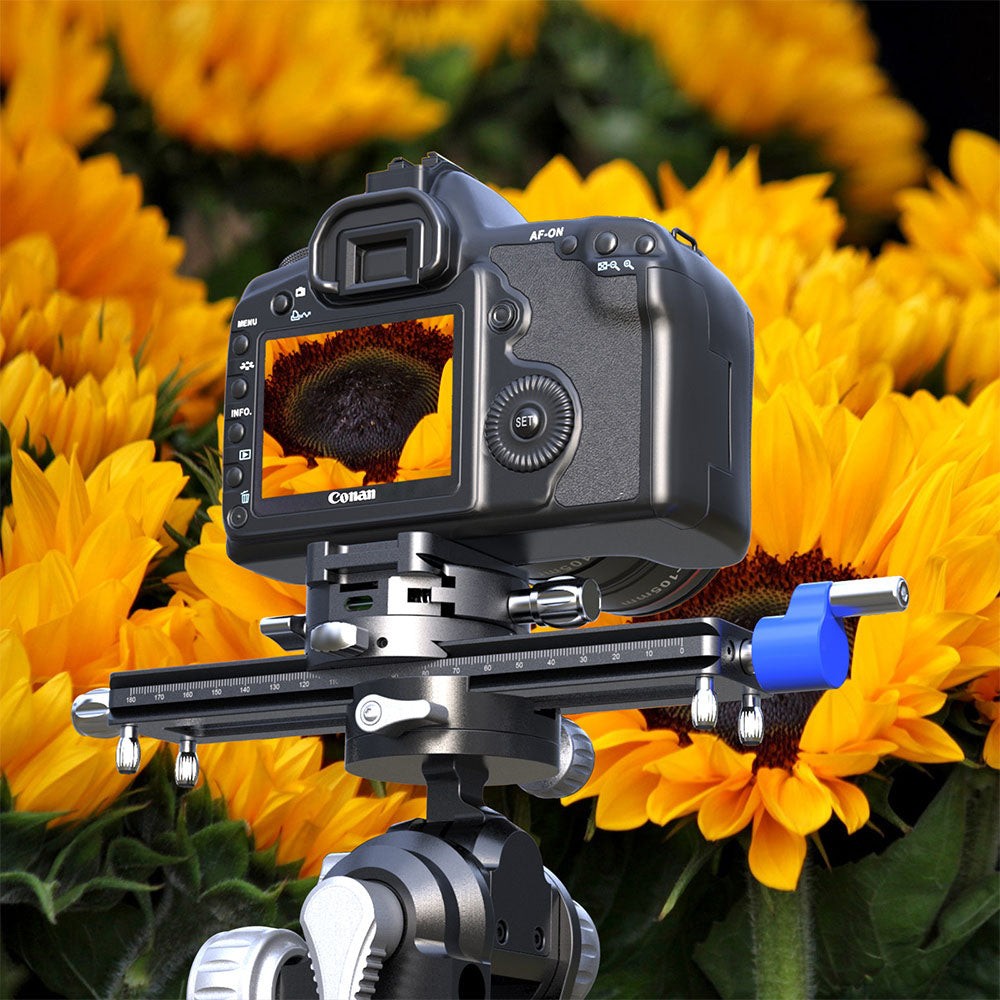

The BFW-150B Macro Focusing Rail from BF BAFANG is a compact, aluminum-alloy rail designed to give macro and product photographers precise control over camera position. It offers micro-adjustment, quick sliding, and even dual-track expansion for greater range. Whether you’re focus stacking a tiny insect or fine-tuning a product shot, the BFW-150B is built to make the process smoother and more accurate.
Why Use a Macro Focusing Rail?
A focusing rail sits between your tripod head and your camera. Instead of moving the entire tripod to adjust focus, you turn a knob or slide the rail to move the camera forward or backward in tiny increments. This is especially useful for:
- Focus stacking – capturing multiple images at different focus distances and combining them in post.
- Precise composition – nudging the camera without disturbing the tripod’s position.
- Repeatable results – returning to the same focus point for consistent product shots.
- High-magnification work – where depth of field is razor-thin and every micron counts.
The BFW-150B is designed specifically for these tasks. It’s lightweight, sturdy, and compatible with the BF BAFANG quick release ecosystem.
What Is the BFW-150B?
The BFW-150B is a macro focusing rail made from aluminum alloy. It weighs just 340g (including the quick release plate) but supports a maximum load of 8KG, making it suitable for most DSLR and mirrorless camera setups. The rail has an effective distance of 110mm and a total rail length of 150mm. Its product size is 220 × 72 × 59mm, so it’s compact enough to carry in a camera bag without adding bulk.
The rail features a BF-60 Quick Release Plate pre-installed, which means it integrates directly with other BF BAFANG products like ball heads, geared heads, and clamps. It also includes a square clamp with a quick-release button, a micro-adjustment knob, a quick sliding crank, and a square splint lock knob.
Key Features of the BFW-150B
1. Micro-Adjustment Knob
The adjusting knob lets you move the rail in very fine increments. The front-back fine-tuning is 1.25mm, and the precision is 0.02mm, giving you the control needed for critical focus adjustments. Turn the knob clockwise or counterclockwise to move the camera forward or backward smoothly.
2. Quick Sliding Crank
When you need to make a larger movement, the quick sliding crank lets you reposition the rail quickly. Release the square splint lock knob, slide the rail to the desired position, then lock it down. This saves time when you’re setting up a shot or changing subjects.
3. BF-60 Quick Release Plate
The included BF-60 plate is pre-installed on the rail. It uses a standard 1/4" screw to mount your camera, and it slides into the square clamp for a secure connection. If you already use BF BAFANG gear, you can swap cameras and plates without missing a beat.
4. Square Clamp with Quick-Release Button
The square clamp holds the quick release plate firmly in place. A quick-release button lets you remove the plate when needed, and the square splint lock knob secures the rail’s position. There’s also a safety screw and round pad to prevent accidental slips.
5. Dual Track Expansion
One of the most versatile features of the BFW-150B is its ability to stack with a second rail. By installing a second micro guide rail to the bottom of the first, you can expand your adjustment range or add left/right movement. This makes the BFW-150B adaptable for complex macro setups, product photography, and even custom rigs.
BFW-150B Specifications
| Specification | Detail |
|---|---|
| Model | BFW-150B |
| Maximum Load | 8KG |
| Effective Distance | 110mm |
| Length of Rail | 150mm |
| Front-Back Fine-Tuning | 1.25mm |
| Precision | 0.02mm |
| Product Size | 220 × 72 × 59mm |
| Material | Aluminum Alloy |
| Weight | 340g (including quick release plate) |
| Quick Release Plate | BF-60 (pre-installed) |
What’s in the Box:
Macro Rail ×1, Quick Release Plate ×1 (pre-installed), M4 Hex Wrench ×1, M2.5 Hex Wrench ×1, M1.5 Hex Wrench ×1, User Manual ×1.
How to Use the BFW-150B
Mounting Your Camera
Start by removing the BF-60 quick release plate from the rail. Press the quick-release button, lift the plate, and align its screw with your camera’s tripod socket. Tighten it with the included hex wrench or a coin. Then slide the plate back into the square clamp and tighten the quick-release knob.
Micro Adjustment
For fine focus, release the square clamp lock knob and turn the adjusting knob. The rail moves in precise increments, letting you adjust focus without touching the camera or tripod. This is ideal for focus stacking and macro work.
Quick Adjustment
For larger movements, release the square splint lock knob and use the quick sliding crank to slide the rail to the desired position. Lock it down when you’re close, then switch to the micro-adjustment knob for the final framing.
Dual Track Expansion
If you need more range, install a second BFW-150B rail beneath the first. This gives you additional front-to-back travel and can be configured for left/right adjustment as well. It’s a smart way to expand your macro rig without buying a larger, heavier rail.
Who Is the BFW-150B For?
The BFW-150B is ideal for:
- Macro photographers shooting insects, flowers, coins, and other small subjects.
- Product photographers who need consistent, repeatable camera positioning.
- Focus stackers who require precise increments between exposures.
- Tabletop and studio shooters working with controlled lighting and composition.
- DIY rig builders who want a modular rail that can be expanded or combined with other gear.
It pairs well with BF BAFANG tripod heads, including the BFC-01A and BFC-02B geared heads and the BFQ Series ball head. Because it uses the BF-60 quick release system, it fits seamlessly into an existing BF BAFANG setup.
Use and Care
Like all precision equipment, the BFW-150B should be handled with care. Avoid strong impacts, bumps, or drops. It is not waterproof, so keep it away from water and rain. If it gets wet, wipe it dry before use. The recommended operating temperature range is -40°C to 60°C. When moving the tripod or rail, always hold the camera for safety.
The product includes after-sales warranty service: free replacement for quality issues within 15 days of purchase, and free repair within one year. Warranty does not cover misuse, accidents, modification, improper operating environment, natural disasters, improper maintenance or storage, third-party damage, or normal wear and discoloration.
Final Thoughts
The BFW-150B Macro Focusing Rail is a small accessory that makes a big difference. It turns a standard tripod setup into a precision macro platform, giving you the control you need for focus stacking, product photography, and high-magnification work. Its aluminum-alloy construction, 8KG load capacity, and dual-track expansion make it both sturdy and versatile. And because it uses the BF-60 quick release system, it integrates cleanly with the rest of the BF BAFANG ecosystem.
If you’re serious about macro photography, a focusing rail isn’t a luxury—it’s a necessity. The BFW-150B is a reliable, affordable, and well-designed option that belongs in your bag.
